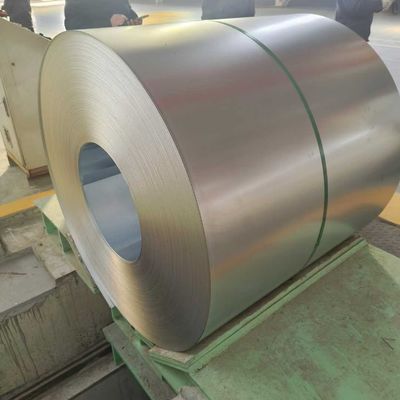

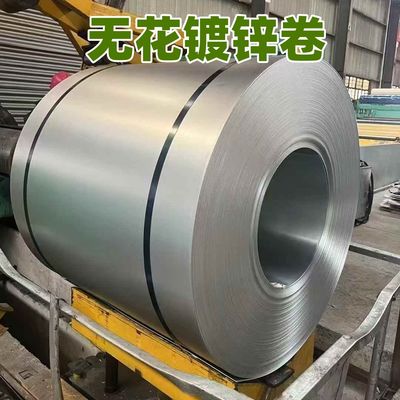

Specification of our galvanized steel coil
| Name |
Galvanized Steel Coil |
| Base metal |
Galvanized Steel Coils, Alumzinc steel coils |
| Productivity |
200,000mt/year |
| Thickness |
0.12-3mm |
| Width |
1000mm, 1250mm |
| Coil Weight |
3-8 MT |
| Zinc coating |
Z40 - Z275 / AZ40 - AZ275 |
| Inside Diameter |
508mm Or 610mm |
| Zinc Coating |
Customered |
| Standard |
Commercial Grade: SGCC, JIS G3321, DX51D, EN1042 or ASTM A792M
Structure Grade: S280GD, S350GD, G550, FULL HARD GRADE |
| Surface Treatment |
oiled / non-oiled |
| Quality Guarantee |
15-20 years outdoor durability |
| Spangle |
None Spangle / Regular Spangle / Small Spangle / Large Spangle |
Available Chinese Mill: WISCO,Capital Steel(Shougang), Ansteel, Baotou, Lianyuan, Tangshan, Jinan, Panzhihua, Kunming, etc and some small mills
Products type we can provide
| Products Type |
Size range |
Packing details |
Weight |
Noted |
| Galvanized steel sheet |
0.25 - 3.0mm x 1000*2000mm/1250*2500mm/1500*3000mm |
Packing by wooden pallets |
within 3 ton each packing |
cuntoms length as request |
| Galvanized steel coil |
0.12 - 3.0mm x 1000/1250mm/1500mm x Coil |
packing by wooden frame |
weight: 2 - 8 Tons |
we can devide into small coils |
| Galvanized steel strips |
0.12-3.0mm x Width 10 - 1500mm x Coil |
packing by wooden pallets |
weight: within 3 Tons |
custom size as request |
Features
1. Hot Dip Galvanized Steel Sheet/plate is manufactured to have a long durability, strong corrosion resistance and shiny surface.
2. Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending

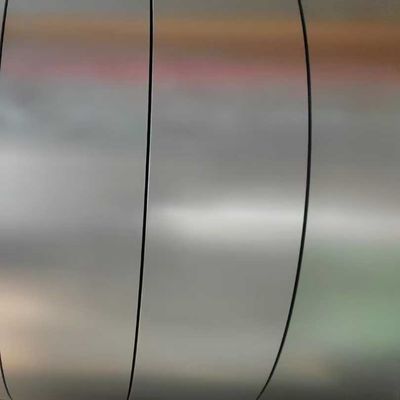

ABOUT SURFACE
REGULAR SPANGLE:
Regular spangle is also called normal spangle which is naturally formed without any additional treatment during galvanizing.
MINI SPANGLE:
The spangle is restrained and formed as mini spangle by reducing the lead content in the zinc liquid or by blowing the zinc powder from the equipment installed on the zinc pot.
EXTRA SMOOTH:
The mini spangle is further skin-passed to produce the extra smooth surface.
Applications:
1. Construction: roof and roof component, outside walls of civilian and industrial buildings, garage doors and window blinds.
2. Houshold appliances: washing machine, refrigerator, television, air conditioner and ventilation system, Vacuum cleaner, solar water heater.
3. Transportation: car ceiling, auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, the ship bulkhead, highway fence.
4. Industry: industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
5. Furniture: lampshade, counter, signboard and medical facility etc.
Product Specification
|
Name Of Product
|
Hot Dipped Galvanized Steel Coil
|
| Grade |
Q195 ,SGCC , DX51D ,SGCD |
| Certification |
ISO9001 ,2000 |
| Thickness |
From 0.14 mm to 1.60 mm , all available |
| Width |
From 930 mm to 1500 mm ,all available |
| Coat Fabric |
Top Coating: 10-25 micron ;Back Coating: 5-7 micron primer |
| Color |
According to RAL ,or as customer’ model |
| Surface Treatment |
Oils coated ,Zinc Coated, Color Coated |
| Package |
Standard Seaworthy Package |
|
Application
|
1) Cable armouring
2) Deep drawing applications
3) Constructions
4) Electric appliance |
Chemical Composition:
| GRADE |
C |
Si |
Mn |
P |
S |
Ti |
| SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
| DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
| SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
| GRADE |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
| SGCC(DX51D+Z) |
≥205 |
≥270 |
- |
| SGCD(DX53D+Z) |
- |
≥270 |
38 |
| SGCE(DX54D+Z) |
- |
≥270 |
4 |
Application:
1) Cable armouring
2) Deep drawing applications
3) Constructions
4) Electric appliance
All items of our products and related tests as follow :
1.ERW black round pipe (ASTM A53,GB..)
2.Weld black square/rectangular pipe(ASTM A500,GB,...)
3.Hot dip galvanized round pipe (BS 1387,ASTM A53,GB ,...)
4.Hot dip galvanized square/rectangular pipe(ASTM A500,GB...)
5.Pre-galvanized square/rectangular/round pipe,cold rolled black annealed or bright finished pipe.
6.Spiral steel pipe
7.Seamless pipe (ASTM A53,A106B,)
8.Oval pipe in galvanized and black surface
9.LTZ... special sizes pipe
10.Steel prop , steel plank,steel scaffolding pipe and accessories... steel constrctution material
11.Steel angle, Flat bar,round bar,sqaure bar,
12.H,I,U,C,T,Y,W...steel beam/channel
13.Deformed steel bar
14.Hot rolled& cold rolled steel sheet/coil in black,galvanized,color coated surface.
Packaging & Shipping
Packing: In bundle.
Loading port: Tianjin,China.
Shipment:usual length ≤5.8m by 20'GP,6m-12m by 40'GP(some sizes with 6m L can be into 20'GP).
Quality Inspection
Our company have all kinds of professional quality in product test technology to ensure
our product high quality.
